APPLICATIONS
Where HOTECH composite panels go to work.
From CKD truck bodies and RV trailers to flight cases and pickleball paddles — thermoplastic honeycomb panels made from a core we produce ourselves.
01 — TRANSPORT & VEHICLE BODIES
Lighter bodies that don't rust, rot or soak up water.
We supply panels on their own or as complete CKD body kits — cut, packed and shipped flat to your assembly line.

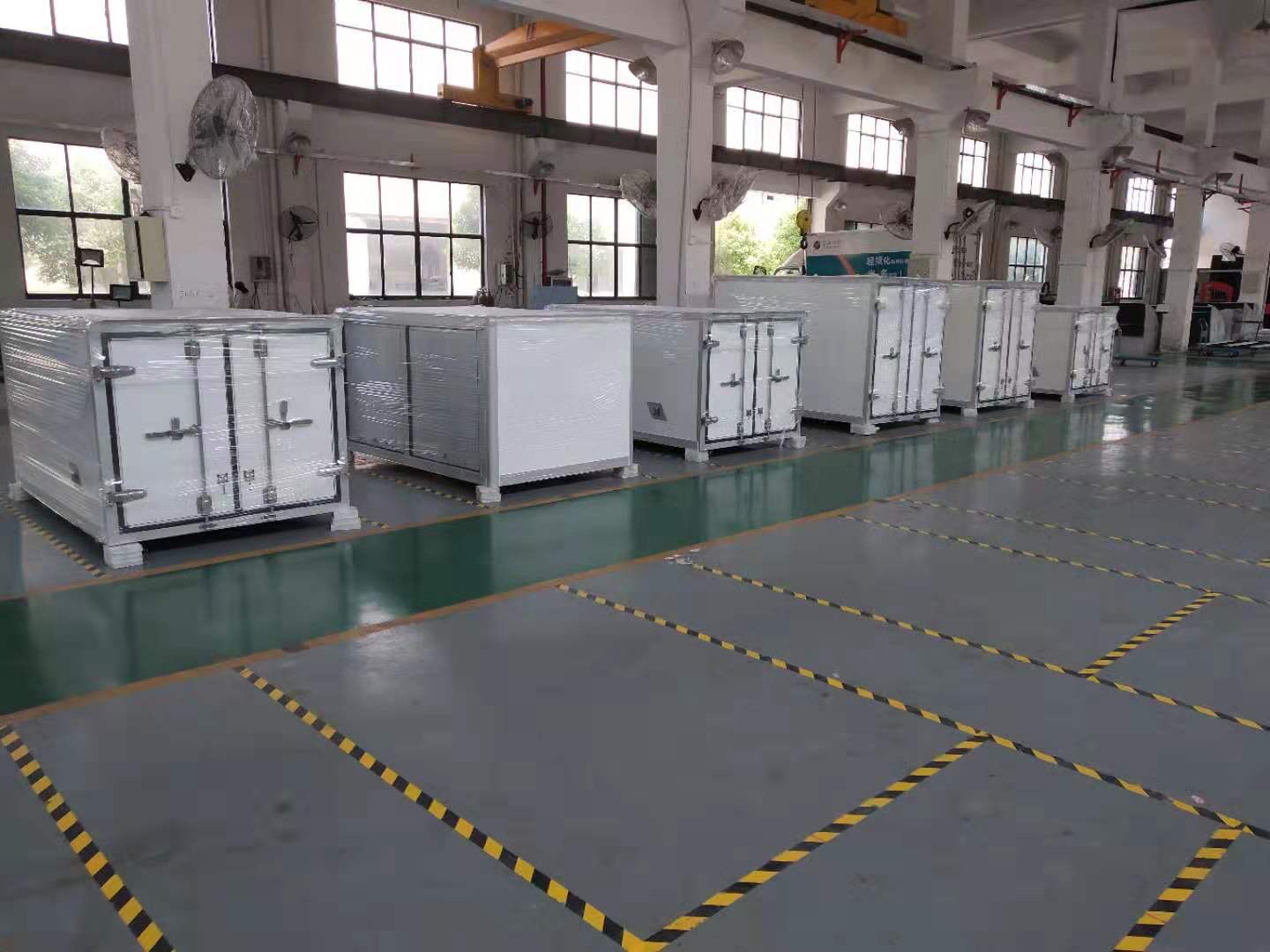

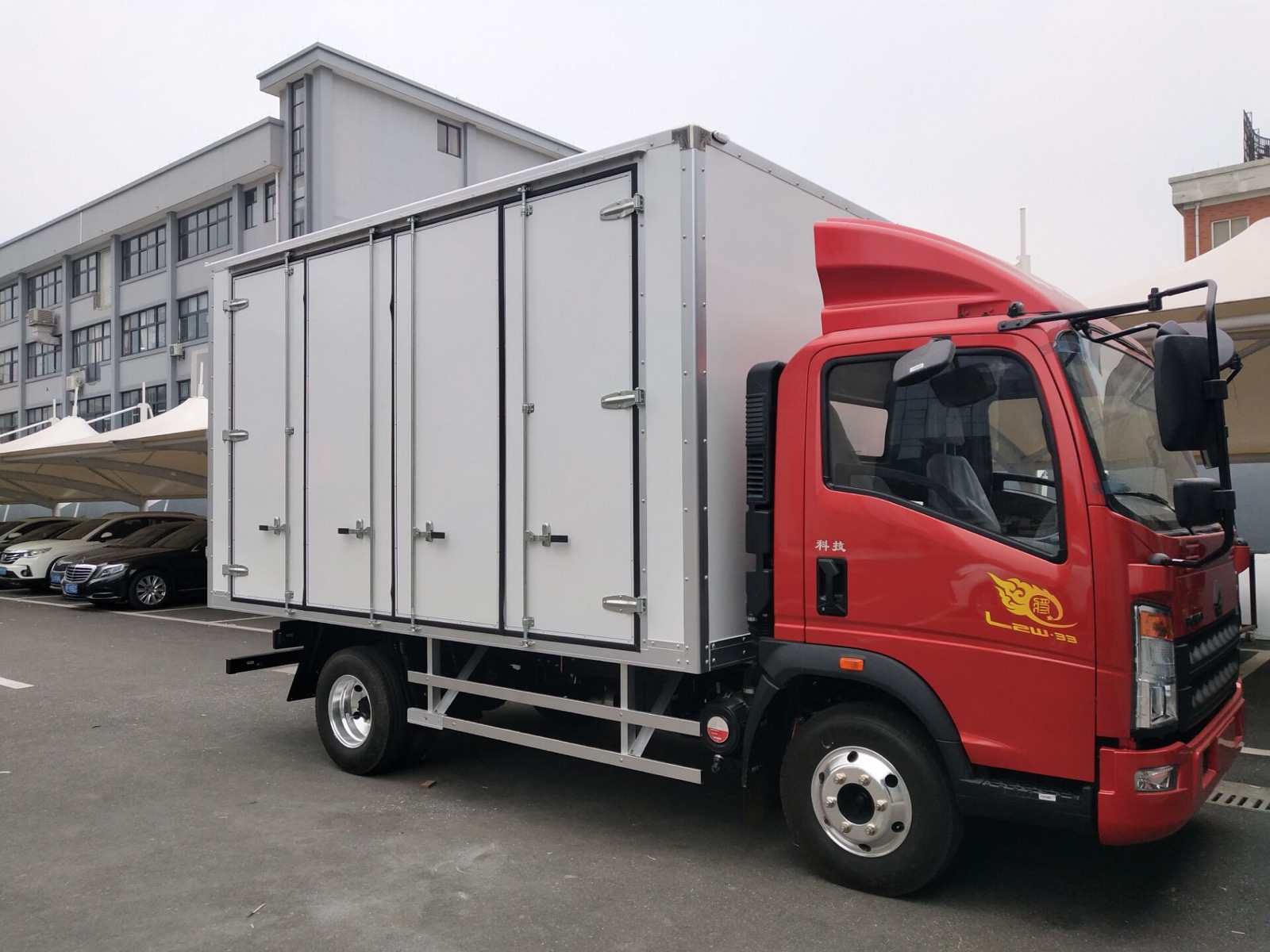

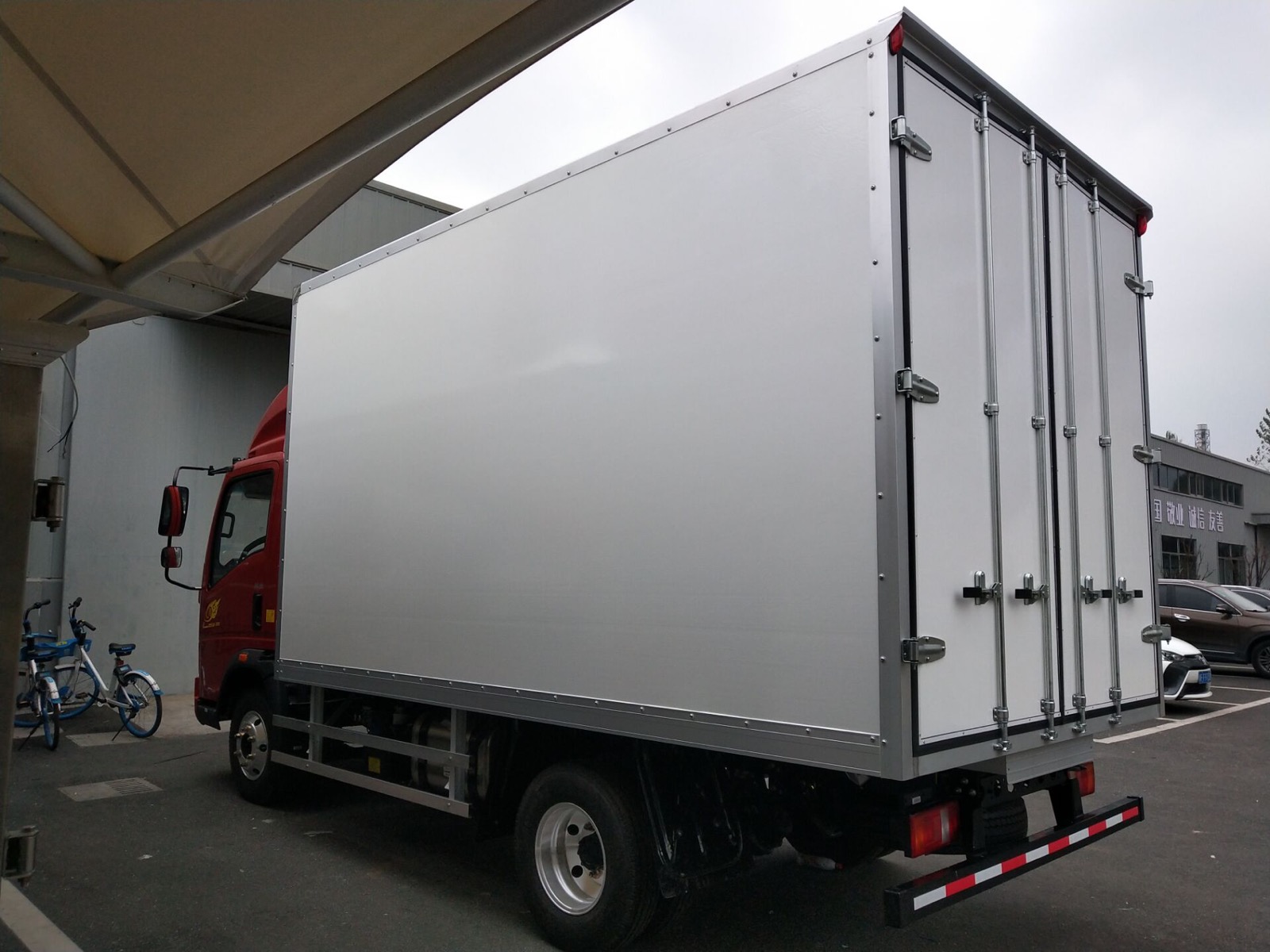

CKD BODYDry freight truck bodies

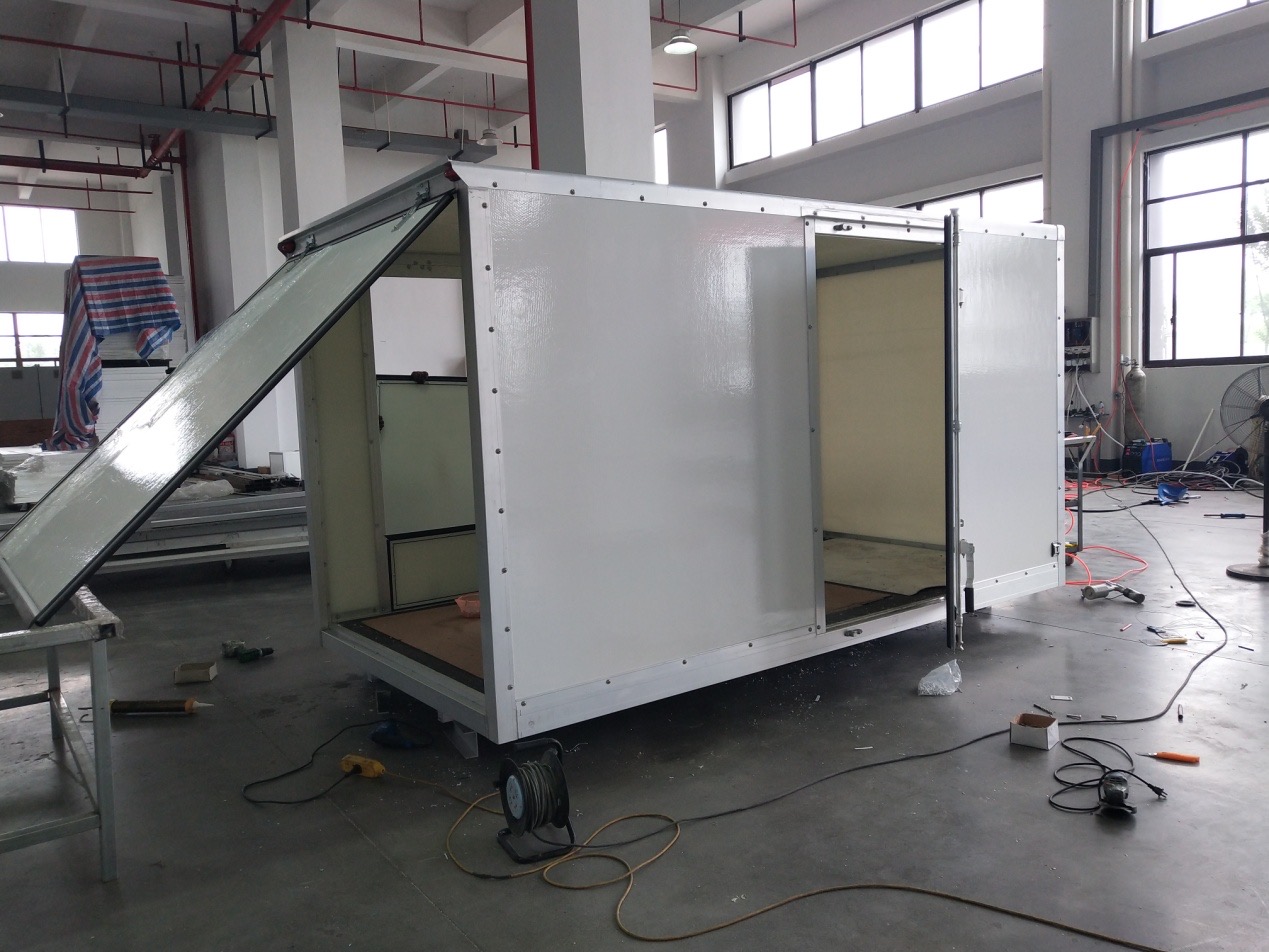

Modular box bodies built from PP honeycomb composite panels, shipped flat-pack as pre-cut panels, aluminium profiles and hardware.

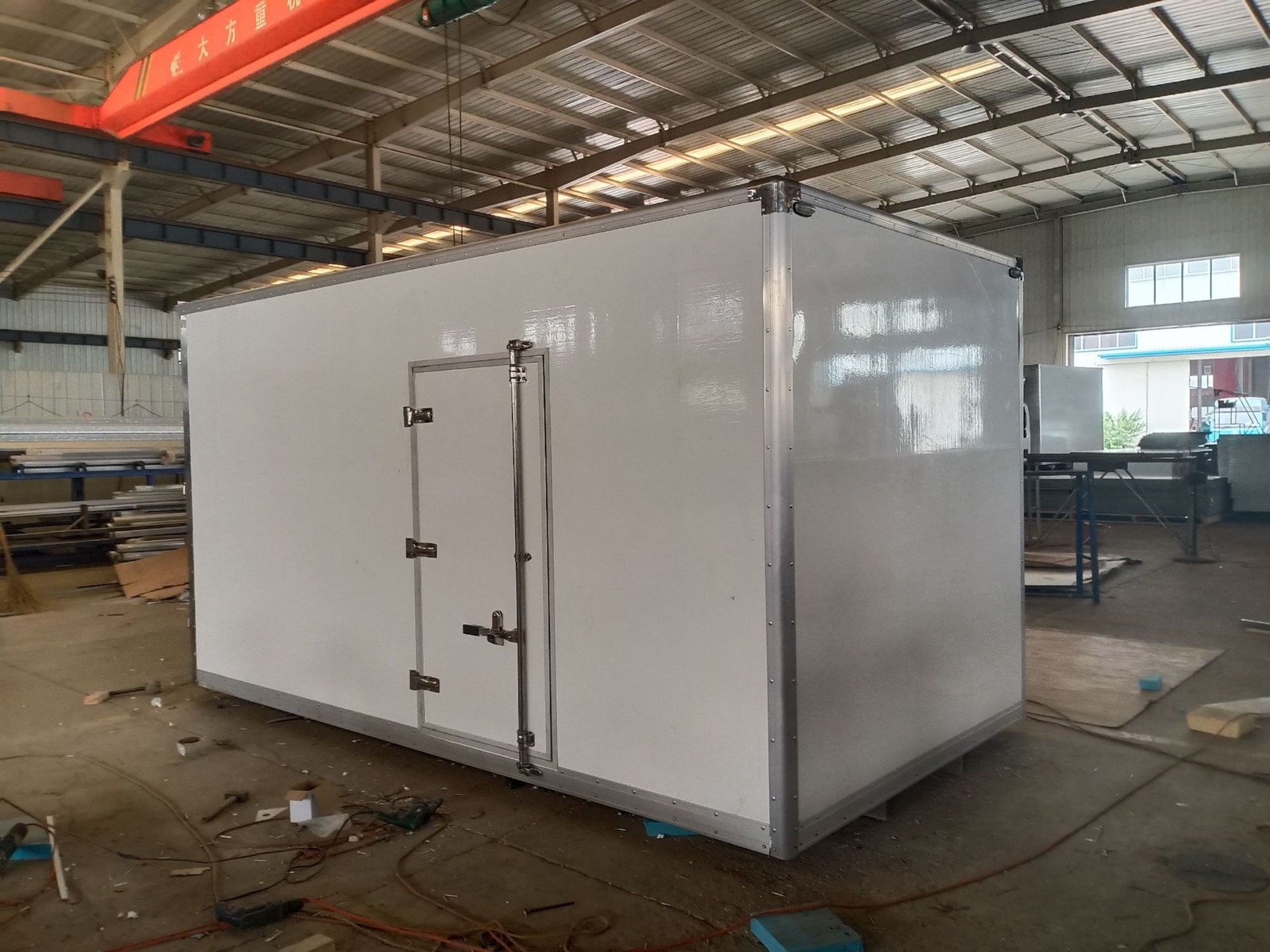

CKD BODYRefrigerated truck bodies
Insulated reefer bodies using MPP micro-foamed panels with a sealed thermal structure for cold chain operations.
PANELS OR BODY KITSRV & camper trailers
Wall, floor and roof panels — or complete CKD body kits — for RV, caravan and camper trailer manufacturers.
PANEL SYSTEMFood trucks & mobile kitchens
Structural PP honeycomb walls, food-safe MPP insulation and anti-slip CFRT floors for food trucks and mobile food carts.
02 — INDUSTRIAL & CONSUMER PRODUCTS
The same core, built into smaller things.
PP honeycomb core and boards for case makers and sports brands — cut to size, with the cell size and thickness your product needs.

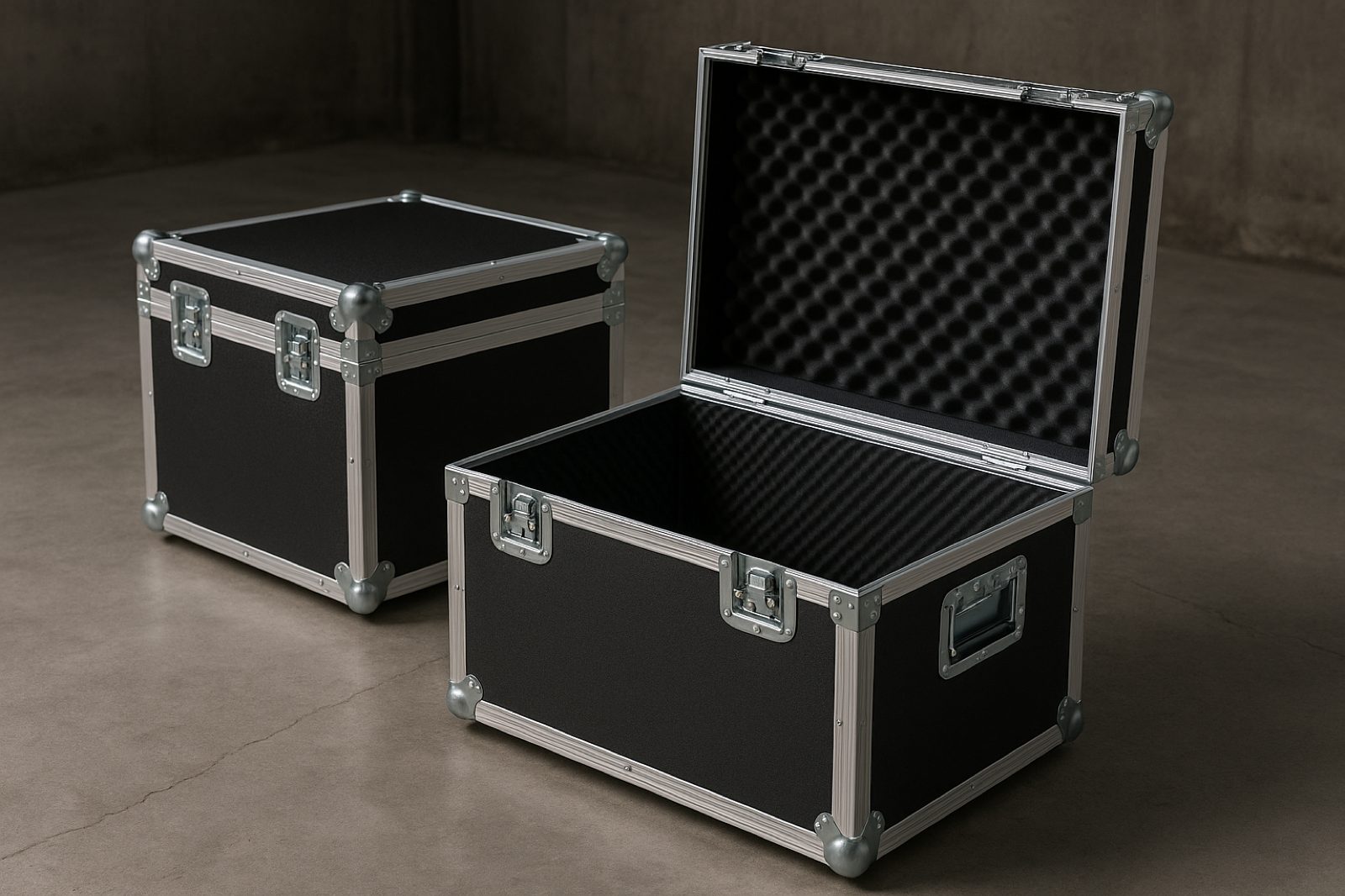

PP HONEYCOMB BOARDFlight & road cases
Honeycomb board that replaces plywood in flight cases, road cases and ATA cases — drillable and rivetable for standard case hardware.

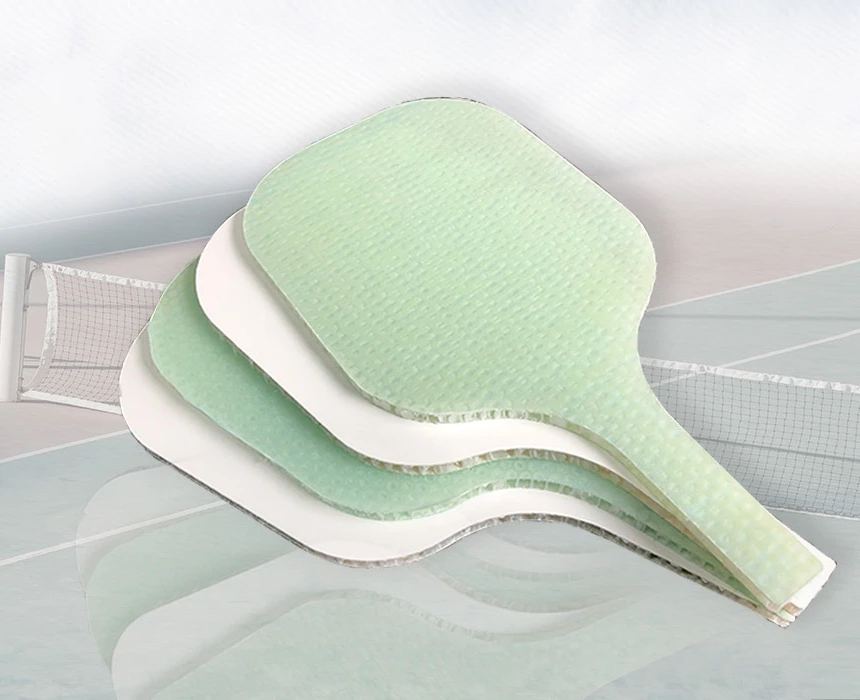

PP HONEYCOMB COREPickleball paddles & sports
Patented PP honeycomb paddle core for pickleball paddles, plus cores for surfboards, paddleboards and other sports equipment.
ALSO USED FOR
Building, packaging & automotive
- Building facades and interior feature walls
- Acoustic barriers and partitions
- Packaging inserts and reusable pallets
- Automotive trunk liners and headliners
- Exhibition booth and furniture panels
03 — WHY THERMOPLASTIC COMPOSITES
What the panel brings to every application.
Lighter than steel
A CKD dry freight body in PP honeycomb panels weighs about 46% less than a steel-sheet body (4.2 m: 490 vs 910 kg) — more payload, less fuel.
Water absorption
PP honeycomb does not swell, rot or delaminate when wet (ASTM D570) — unlike plywood or moisture-absorbing cores.
Recyclable polypropylene
Core and skins are thermoplastic, so panels can be recycled at the end of their service life.
W/(m·K) MPP insulation
Food-safe MPP micro-foamed panels insulate at 0.028–0.033 W/(m·K) for reefer bodies and food trucks.
04 — PANEL SELECTION GUIDE
Which HOTECH material for which application?
Typical configurations from our application and product pages. Send your drawing and we will confirm thickness, skins and core for your build.
| Application | Recommended material | Typical specification |
|---|---|---|
| Dry freight bodies | CKD bodies LS300–LS450, 14.45–23.55 m³ | |
| Refrigerated bodies | Double-side PET MPP walls · -20°C to +8°C | |
| RV & camper trailers | Walls 15–25 mm · floors 20–30 mm · roofs 10–20 mm | |
| Food trucks | Walls 15–20 mm · insulation 20–40 mm · floor 20–30 mm | |
| Flight & road cases | 8–12 mm standard · 15–20 mm heavy-duty | |
| Pickleball paddles | 6 mm / 8 mm cells · 10–16 mm core |
05 — PANELS OR FINISHED BODIES
Buy the panel. Or the whole body.
Our 50,000+ sqm Tongxiang factory runs the full chain — PP honeycomb core, composite panels and CKD vehicle bodies — so you can order at the stage that suits your production.
- Flat-pack CKD shippingPanels, aluminium profiles and hardware ship in standard containers, cutting freight costs by 60% or more.
- Simple on-site assembly2–3 workers assemble a body in about one working day with basic hand tools.
- Malaysia partner assemblyJoinpro Sdn Bhd in Kulai, Johor (est. 2024) handles vehicle and product assembly.
Tell us what you are building.
Send your drawings or panel specs — we reply with a quotation within 24 hours.
