VEHICLE SOLUTIONS

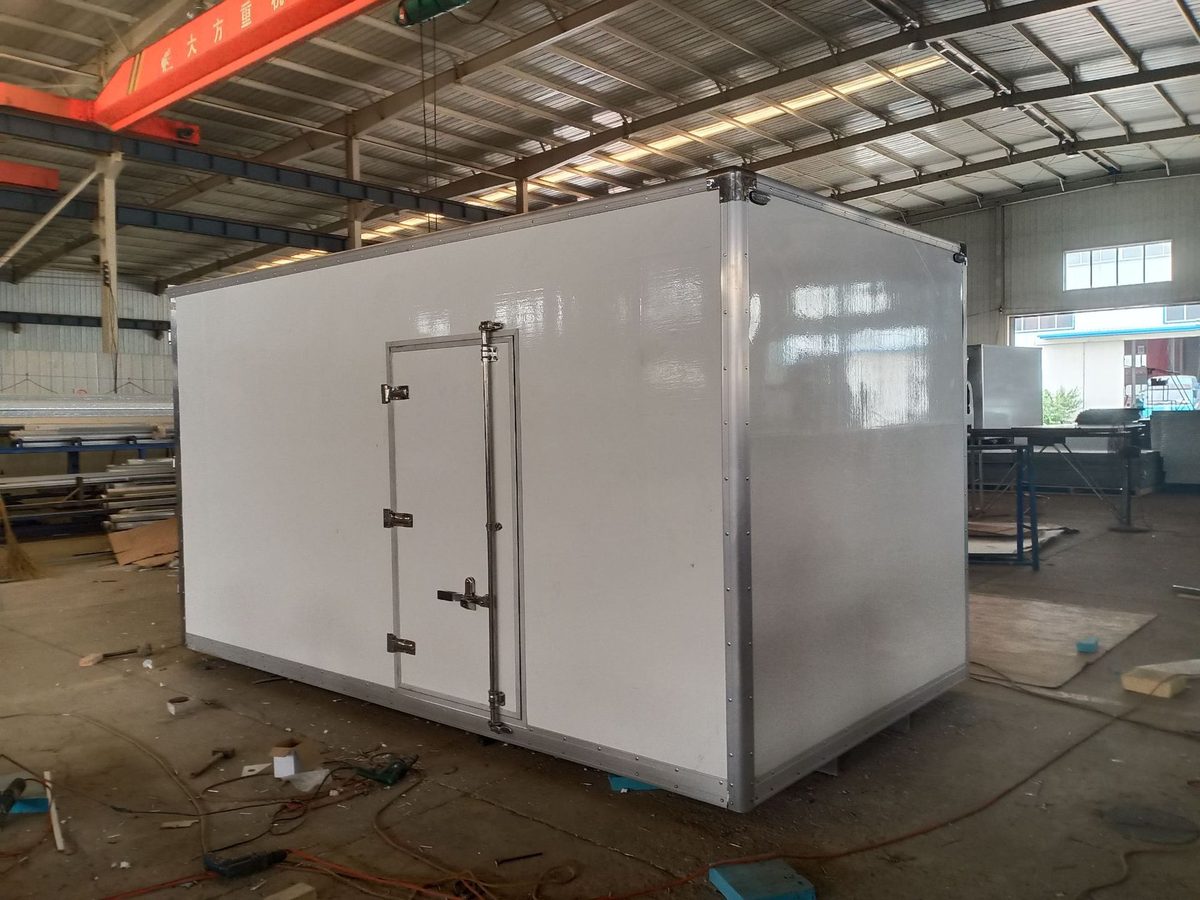

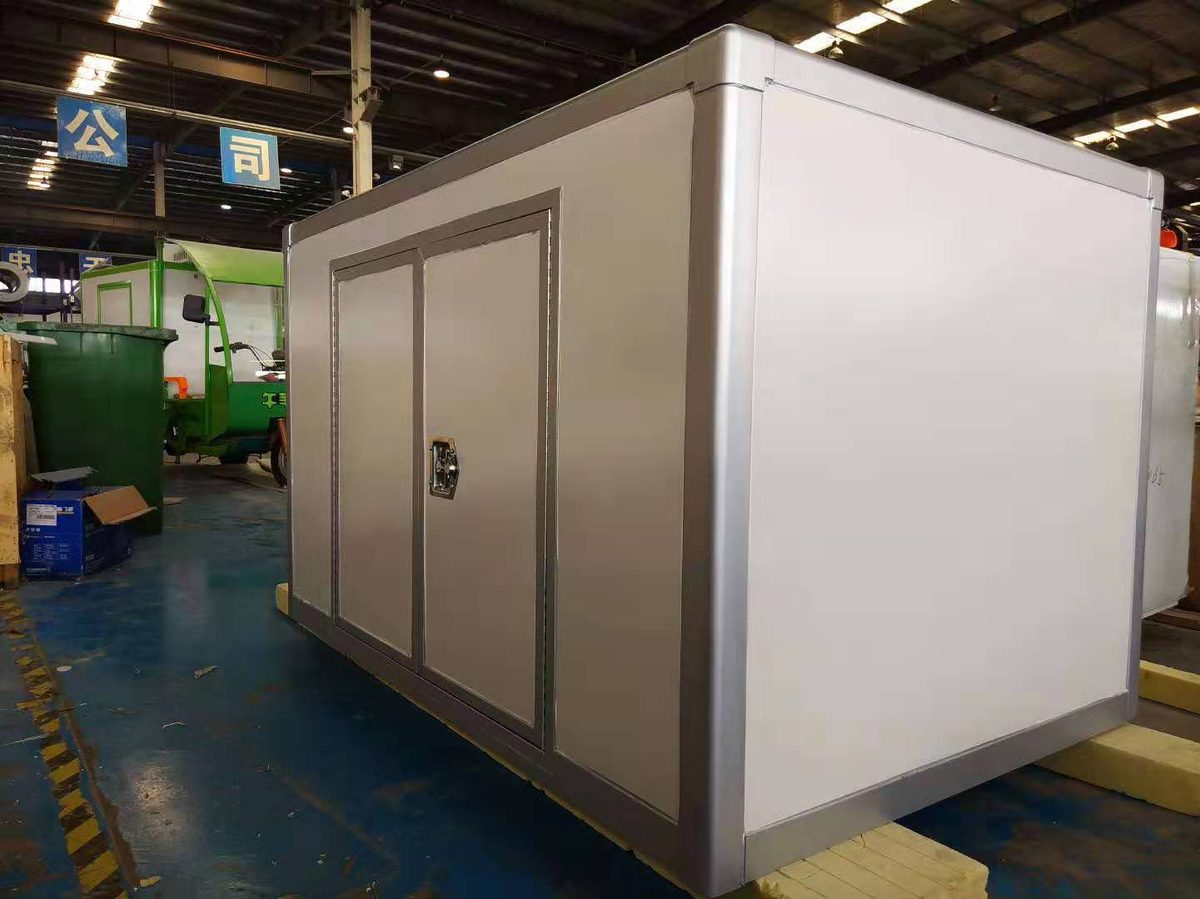

CKD Refrigerated Bodies
MPP insulation panel based CKD refrigerated truck bodies with sealed thermal structure. Lightweight, food-safe, excellent thermal performance for cold chain logistics.
Insulated body system
Our CKD refrigerated bodies use MPP (Micro-foamed Polypropylene) insulation panels with a sealed thermal structure. Unlike polyurethane foam, MPP does not absorb moisture or degrade over time, maintaining insulation efficiency throughout the vehicle's service life.

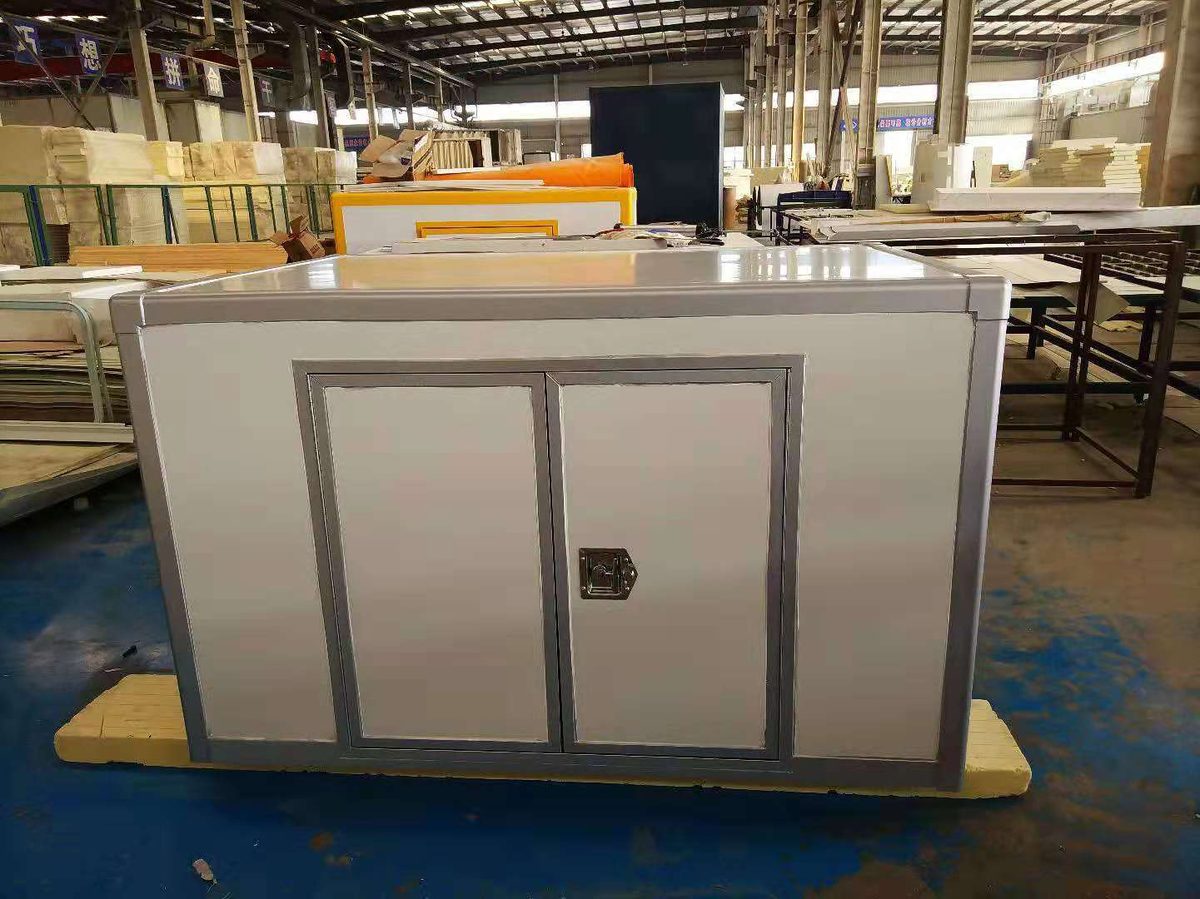

Food-safe, 30% lighter than conventional PU-insulated bodies, and 100% recyclable at end of life. Available with rear door, side door, or combined configurations.
Specifications
| Item | Details |
|---|---|
| 4.5T Reefer | 4129×2139×2077 mm — 12.58+1.2 m³ — Rear + side door |
| Insulation | Double-side PET MPP foam panels |
| Temperature range | -20°C to +8°C |
| K-value | Comparable to polyurethane foam |
| Food safety | Suitable for direct food contact |
| Assembly | CKD flat-pack, 2-3 workers, one day |
Where it fits
- Fresh produce and dairy cold chain
- Frozen food distribution
- Pharmaceutical cold chain transport
- Catering and food service delivery
- Temperature-sensitive e-commerce logistics
Manufacturing capability
Full manufacturing chain under one roof at our 50,000+ sqm Tongxiang facility. 31 patents, ISO 9001 certified.
Questions before ordering
What temperature range can these bodies maintain?
Our CKD refrigerated bodies are designed for cold chain operations from -20°C to +8°C. Temperature maintenance depends on refrigeration unit selection.
What makes MPP insulation different from PU foam?
MPP uses supercritical CO₂ to create closed-cell foam without chemical blowing agents. It is food-safe, recyclable, lighter than PU foam, and does not absorb moisture or degrade.
Is the insulation food-safe?
Yes. MPP panels are food-safe for direct contact with food products.
